M.2 MLC or 3D eNAND NVMe up to 2TB
The Asine M.2 is a top reliable high performance storage Solid-State Disk

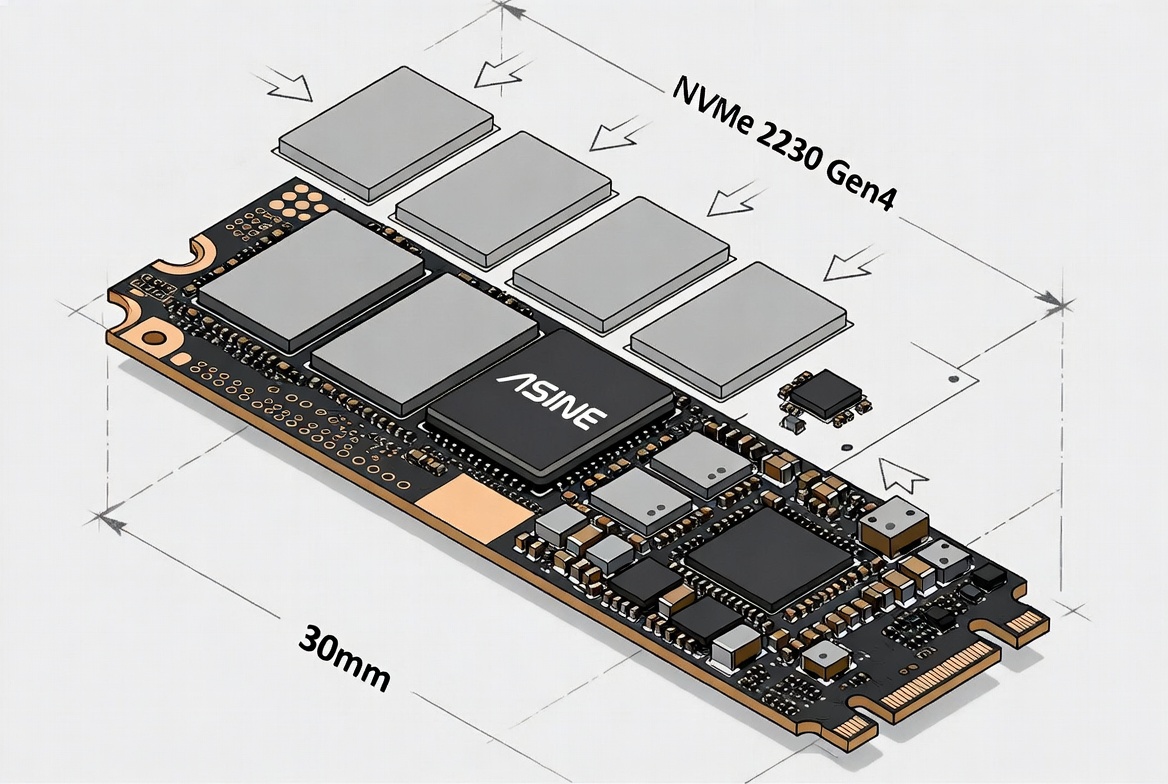

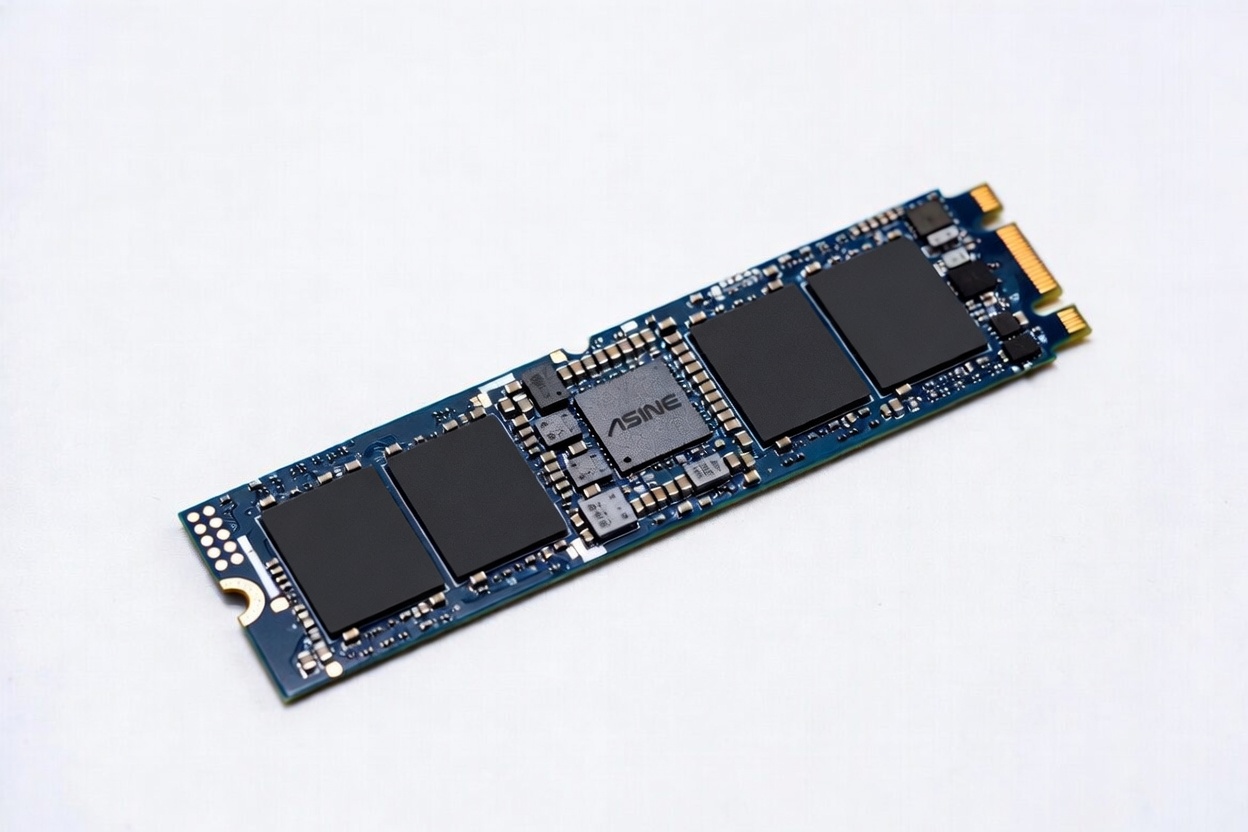

M.2 2230 NVMe 3D eNAND Gen 4
M.2-2230 SSD device Gen4 NVMe 4X Lane interface in a standard package and M.2-2230 eNAND TLC Flash Disk

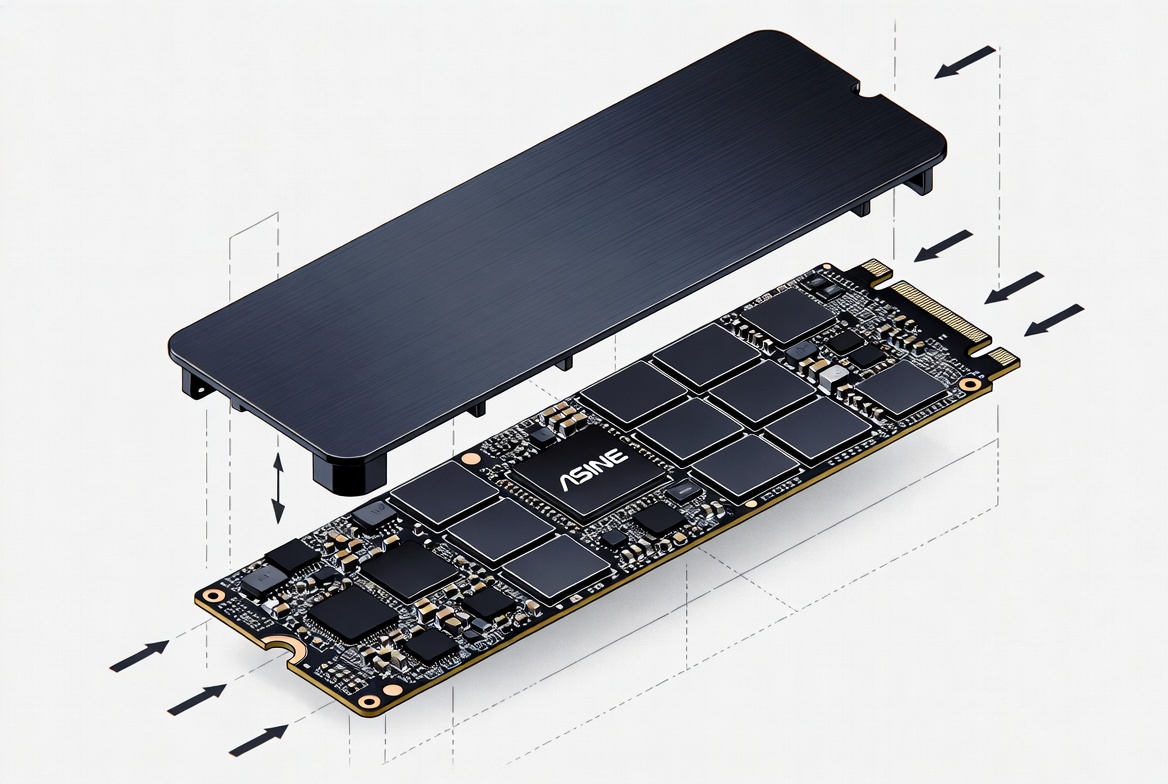

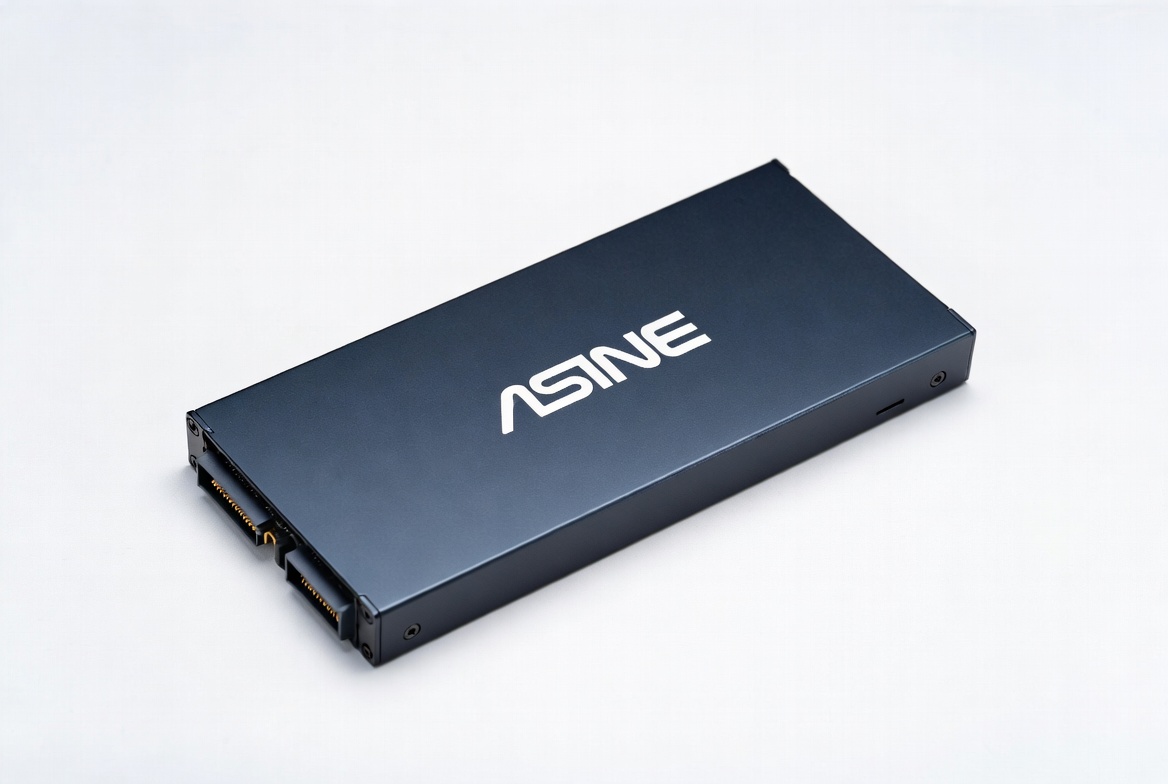

U2 NVMe 3D eNAND
U.2 flash drive delivers performance and proven reliability
M.2 & 2.5” SSD SATA 3D eNAND
M.2 & 2.5” SSD TLC SATA3 interface at small package Flash Disk

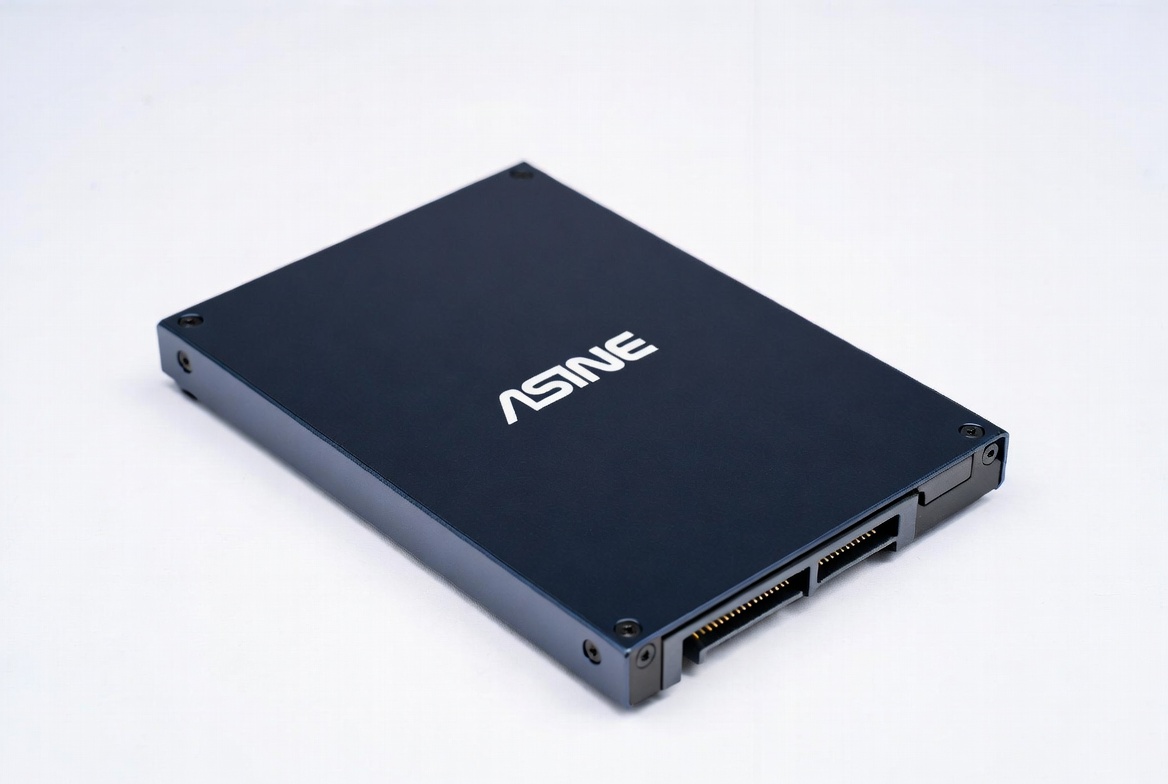

2.5” SATA MLC / pSLC up to 16TB
2.5” Form Factor SLC, pSLC and MLC Flash Drive

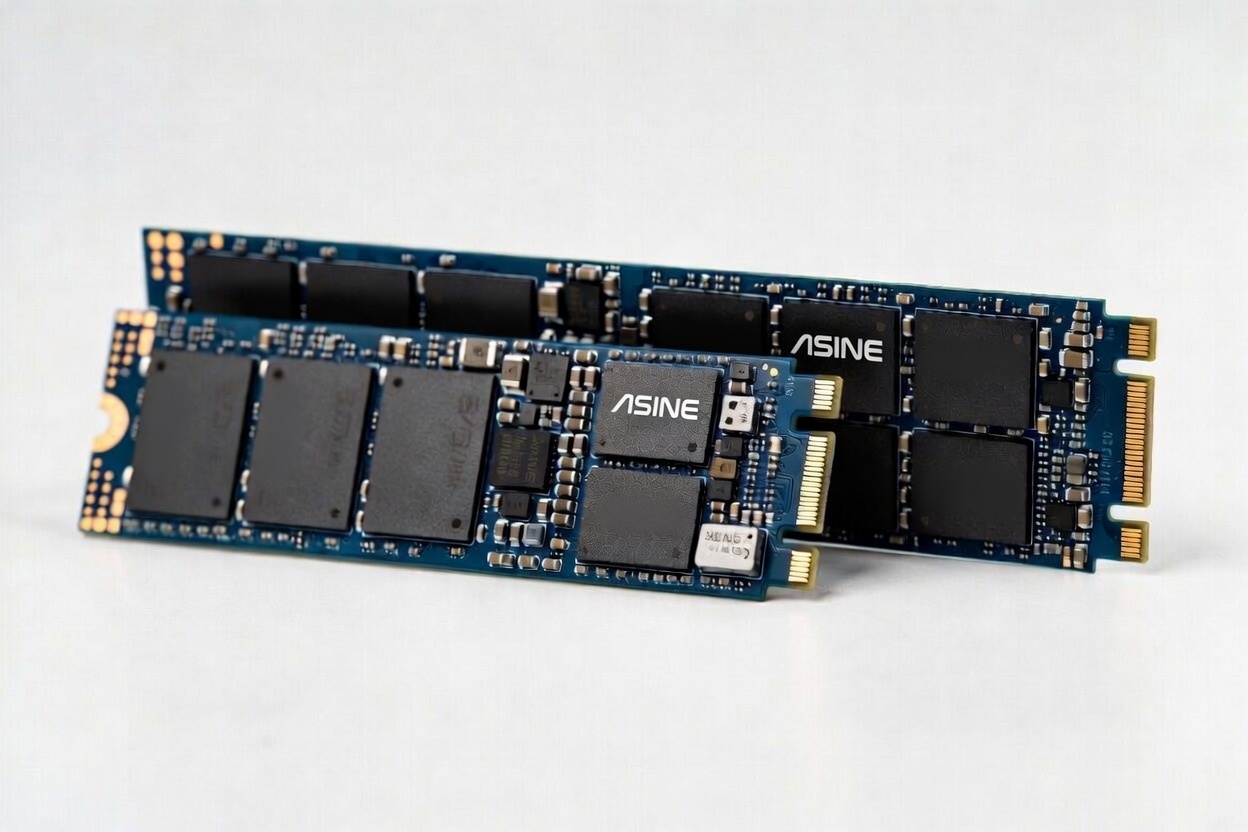

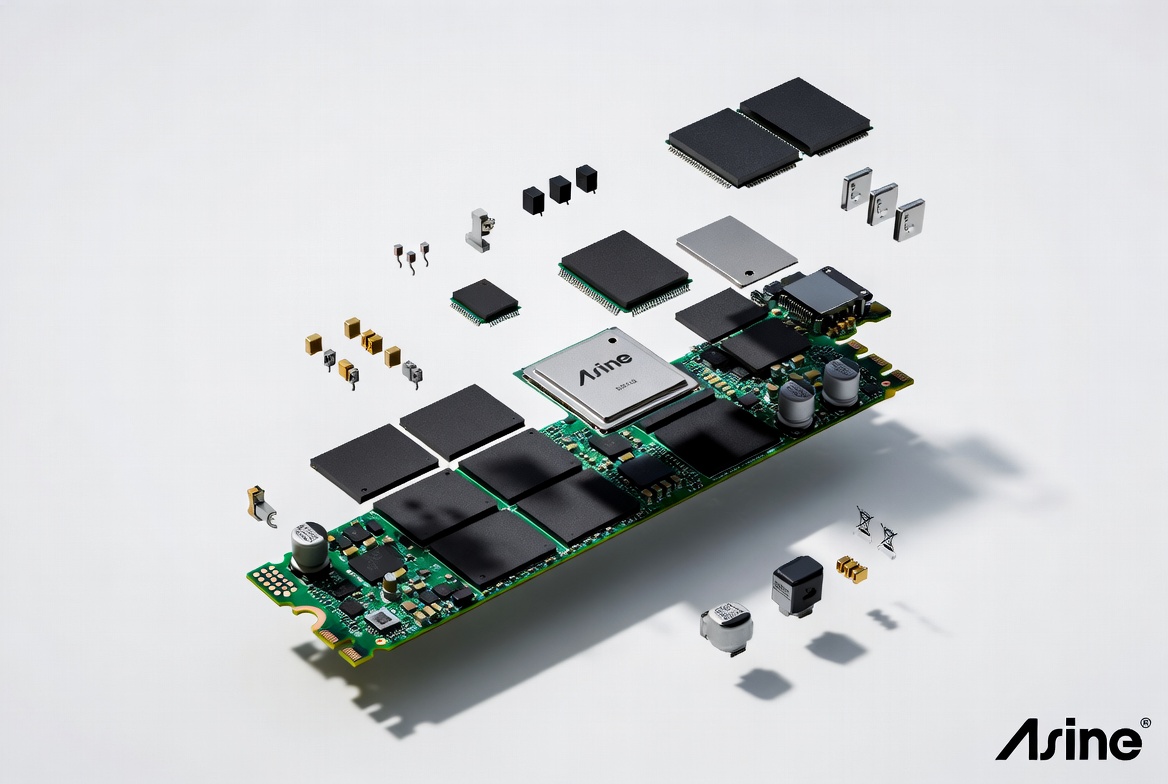

M.2 22xx MLC/pSLC SATA up to 2TB
The Photon series M.2 SSD device presents SATA interface small package pSLC/MLC Flash Disk
Optimal Embedded Solutions Like Never Before
Asine —Taking Embedded Solutions to the Next Level
We are not those ordinary manufacturers who offer conventional solutions. Asine acquires the expertise and technical skills of professionals to develop efficient products that are reliable, able to withstand the harshest of environments, customizable to your specific needs, and in accordance with modern industrial requirements. All SSD products meet your format size: 2.5″ or M.2, along with interfaces: SATA3 or NVMe.
About Products
Asine is a reputable name in the world of leading manufacturers and designers
Our SSD Flash Disk Product Line

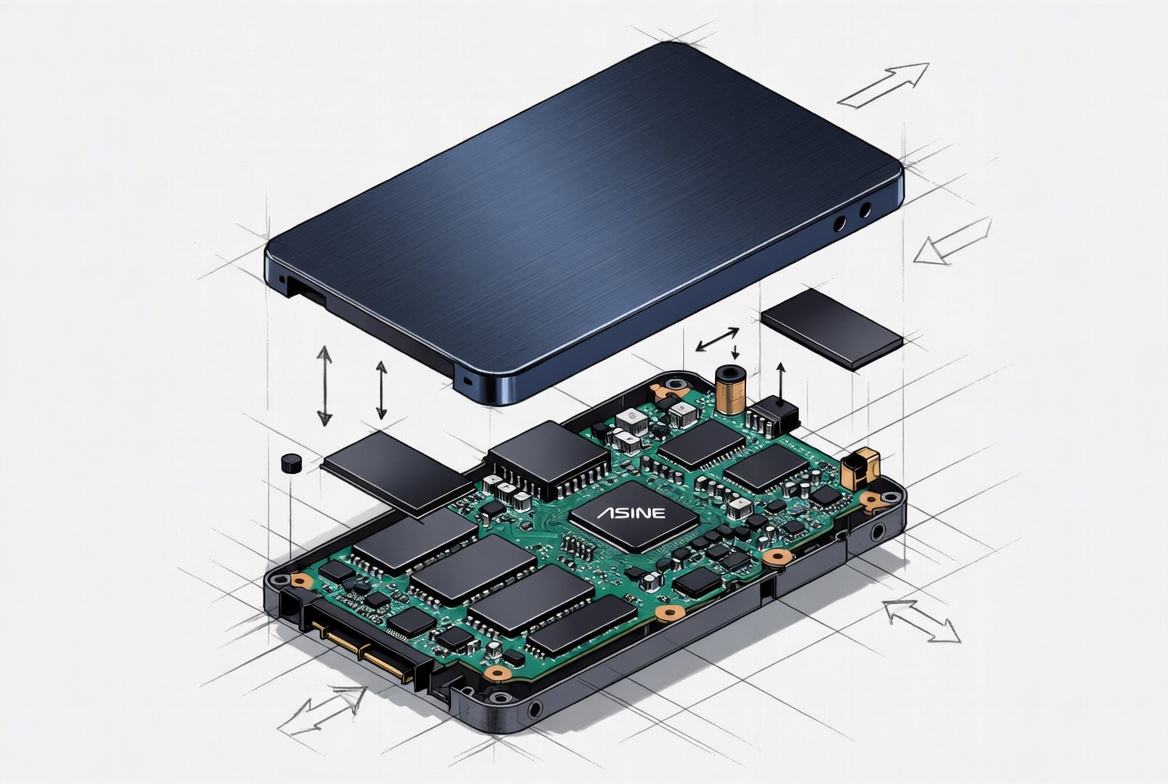

2.5"
AS25-SATA3
AS25-SATA3_HCF
AS25-NVMe
AS25-NVMe_UHC

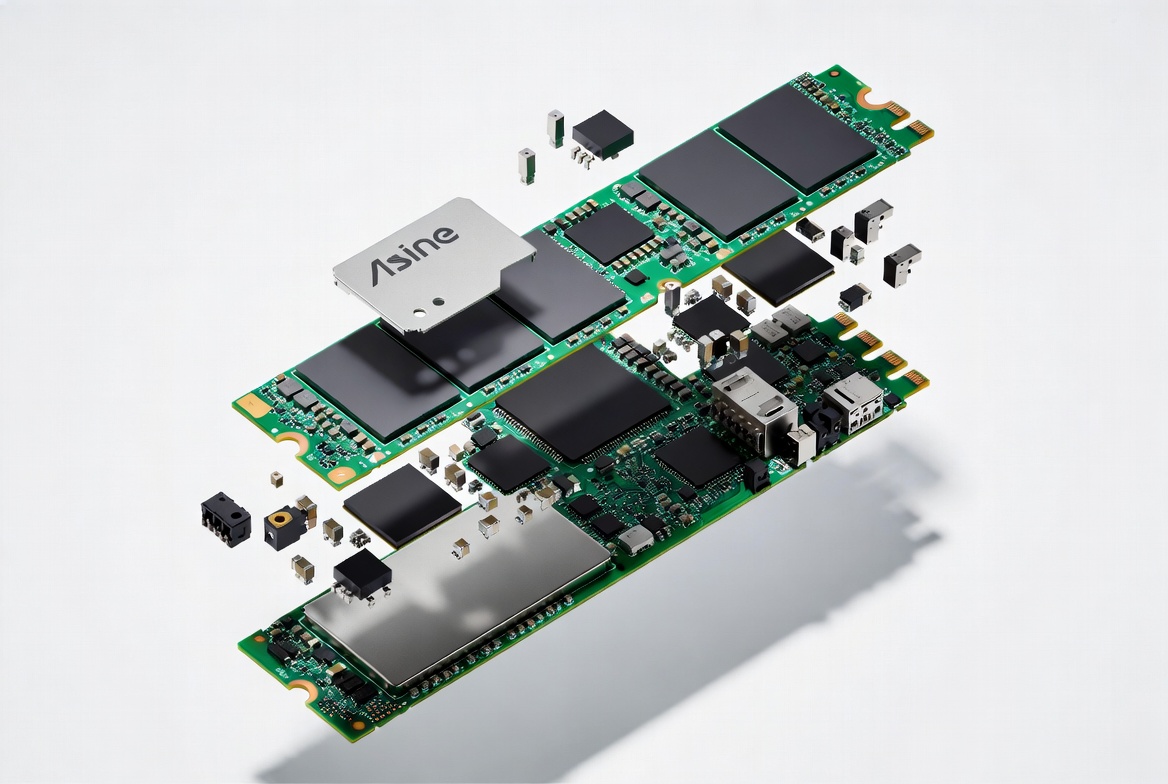

M.2

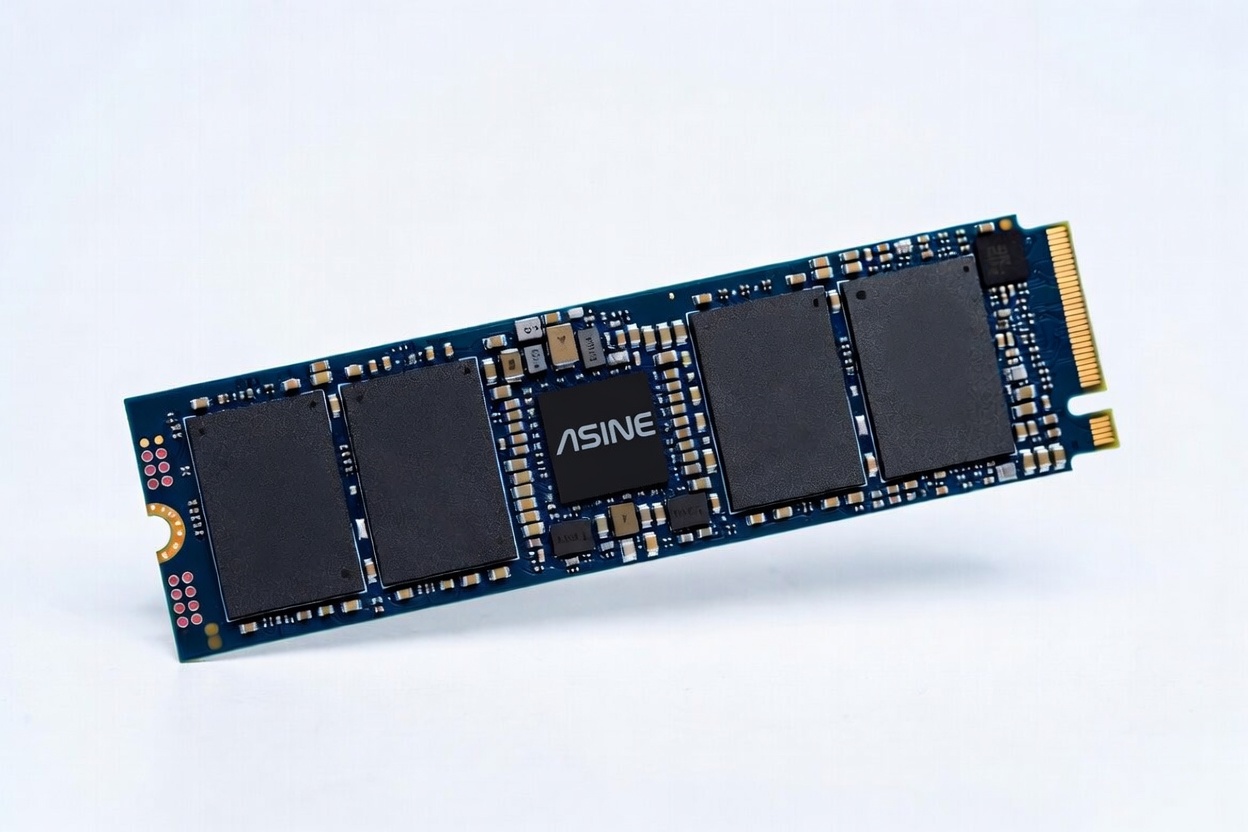

M.2 3D eNAND NVMe Gen3 PCIexpress
M.2 2242 and 2280 3D eNAND SATA
BGA SMT
AS-NanoX-3D SATA
AS-NanoX-3D PCIe
Why Choose Our Products
Asine takes pride in making its product line stand out from other competitors. Asine’s workmanship in its products strives to meet and exceed your expectation.
You would find all the functional requirements and features in our products. Following set of features are some of the examples that makes our products reliable for diverse industrial environments:
- Mean time between failures (MTBF) up to 2,000,000 hours
- Low power consumption
- High endurance life
- Used by notable industries and brands (Click to view)
- High data transfer rate: Read up to 3400MB/Sec and Write up to 3000 MB/Sec
- Operating temperature up to 85°C
- AES 256-bit hardware encryption and OPAL
- Fast sanitize erase
- High humidity tolerance up to 95%
- Up to 1,500G/0.5ms shock resistant
Asine Industrial 3D eNAND TLC & QLC Line Card
Line Card Extended 2021
| Family | AS25-SATA3 | AS-M.2-2280-SATA | AS-M.2-2242-SATA | AS-M.2-NVMe | ASNanoX-SATA BGA |
New AS-M.2-2280-HCF-NVMe |
AS-U.2-UHC-NVMe To be announced |
New AS-U.2-HCF-NVMe |
|---|---|---|---|---|---|---|---|---|
|
Family
Capacity Max
|
AS25-SATA3
2TB
|
AS-M.2-2280-SATA
500GB
|
AS-M.2-2242-SATA
2TB
|
AS-M.2-NVMe
500GB
|
ASNanoX-SATA BGA
7.68TB
|
New AS-M.2-2280-HCF-NVMe
7.68 to 30TB
|
AS-U.2-UHC-NVMe To be announced
7.68TB
|
|
|
Family
NAND technology
|
AS25-SATA3
3D e-Nand TLC Flash
|
AS-M.2-2280-SATA
3D TLC Flash
|
AS-M.2-2242-SATA
pSLC, TLC 3D Flash
|
AS-M.2-NVMe
3D QLC Flash
|
ASNanoX-SATA BGA
3D TLC Flash
|
New AS-M.2-2280-HCF-NVMe
3D TLC Flash
|
||
|
Family
Sustained Read / Write (MB/sec)
|
AS25-SATA3
560 / 520
|
AS-M.2-2280-SATA
2700 / 2800
|
AS-M.2-2242-SATA
500 / 500
|
AS-M.2-NVMe
3400 /3000
|
ASNanoX-SATA BGA
3100 / 2500
|
New AS-M.2-2280-HCF-NVMe
3300 / 3000
|
||
|
Family
IOPS Read / Write
|
AS25-SATA3
Up to 100K / Up to 91K
|
AS-M.2-2280-SATA
Up to 80K / Up to 81K
|
AS-M.2-2242-SATA
Up to 335K / Up to 280K
|
AS-M.2-NVMe
Up to 91K / Up to 50K
|
ASNanoX-SATA BGA
Up to 600K / Up to 660K
|
New AS-M.2-2280-HCF-NVMe
Up to 400K / Up to 400K
|
AS-U.2-UHC-NVMe To be announced
Up to 600K / Up to 500K
|
|
|
Family
Disk interface
|
AS25-SATA3
SATA3
|
AS-M.2-2280-SATA
PCIe Gen3 x4 lanes NVMe 1.3 compliant
|
AS-M.2-2242-SATA
SATA3
|
AS-M.2-NVMe
PCIe Gen3 x4 lane NVMe 1.3 compliant
|
||||
|
Family
Secure Erase
|
AS25-SATA3
Fast Sanitize
|
|||||||
|
Family
Fast SE
|
AS25-SATA3
ATA8 security feature set
|
AS-M.2-2280-SATA
Yes (User selectable ATA password support (M.2)
|
AS-M.2-2242-SATA
Compliant NVMe Secure Erase support (OPAL)
|
AS-M.2-NVMe
ATA8 security feature set
|
ASNanoX-SATA BGA
Compliant NVMe Secure Erase support
|
New AS-M.2-2280-HCF-NVMe
N/A
|
AS-U.2-UHC-NVMe To be announced
Compliant NVMe Secure Erase support
|
|
|
Family
Endurance TBW write / erase
|
AS25-SATA3
Up to 1360 @ 2TB
|
AS-M.2-2280-SATA
Up to 500 @ 500GB,
Enterprise (option V): up to 12000 @ 1TB, up to 3000 @ 240 GB 128K sustain write, Enterprise (option V): 6000 @ 500GB 128K sustain write |
AS-M.2-2242-SATA
Up to 900 @ 2TB, Enterprise (option V): 6000 @1TB 128k sustain write
|
AS-M.2-NVMe
Up to
1800 @ 240GB of pSLC,
360 @ 240GB TLC.
Extended endurance 30K P/E for pSLC, 3K P/E for TLC
|
ASNanoX-SATA BGA
Up to 840 @ 8TB
|
New AS-M.2-2280-HCF-NVMe
28,800 (avg.) @ 30TB
|
AS-U.2-UHC-NVMe To be announced
Up to 840 @ 8TB
|
|
|
Family
Endurance DWPD
|
AS25-SATA3
DWPD 0.37 (usage profile dependant)
|
AS-M.2-2280-SATA
DWPD 0.54 (usage profile dependant)
|
AS-M.2-2242-SATA
DWPD 0.24 (usage profile dependant)
|
AS-M.2-NVMe
DWPD 4.1 (usage profile dependant)
|
ASNanoX-SATA BGA
DWPD 0.2 to 1.1 (usuage profile dependent)
|
New AS-M.2-2280-HCF-NVMe
DWPD 0.8 @ 30TB (avg. of 100% 4K Random to 100% 128K sustain)
|
AS-U.2-UHC-NVMe To be announced
DWPD 0.2 to 1.1 (usuage profile dependent)
|
|
|
Family
Endurance Read Cycles
|
AS25-SATA3
Unlimited read cycles |
|||||||
|
Family
Operating temperature
|
AS25-SATA3
Commercial: 0°C to +70°C, Industrial: -40°C to +85°C
|
AS-M.2-2280-SATA
Commercial: 0°C to +70°C
|
AS-M.2-2242-SATA
Commercial: 0°C to +60°C
|
|||||
|
Family
Reliability features MTBF
|
AS25-SATA3
1,500,000 Hours MTBF, PLP- Power Lost Protection – SPOR
|
AS-M.2-2280-SATA
1,500,000 Hours MTBF, Moderate SPOR/PLP
|
AS-M.2-2242-SATA
2,000,000 Hours MTBF
|
AS-M.2-NVMe
1,800,000 Hours MTBF, Moderate SPOR/PLP
|
ASNanoX-SATA BGA
1,500,000 Hours MTBF by JEDEC-218/219
|
New AS-M.2-2280-HCF-NVMe
1,500,000 Hours MTBF, Moderate SPOR/PLP
|
||
|
Family
Error correction
|
AS25-SATA3  Embedded EDC/ECC, support up to 64-bit BCH Algorithm for Error Correction Code. Built-in power-up self test and automatic self-diagnostics Wear-Leveling Algorithm: Dynamic & Static wear leveling
|
AS-M.2-2280-SATA Embedded EDC/ECC. Bad Block Mapping and Management Built-in power-up self test and automatic self-diagnostics Wear-Leveling Algorithm: Dynamic & Static wear leveling
|
AS-M.2-2242-SATA Embedded LDPC EDC/ECC, support up to 64-bit BCH Algorithm for
Error Correction Code. Bad Block Mapping and Management SMART support Built-in power-up self test and automatic self-diagnostics Wear-Leveling Algorithm: Dynamic & Static wear leveling
|
AS-M.2-NVMe Embedded EDC/ECC. Bad Block Mapping and Management Built-in power-up self test and automatic self-diagnostics Wear-Leveling Algorithm: Dynamic & Static wear leveling
|
||||
|
Family
Encryption
|
AS25-SATA3
AES256, OPAL 2.0
|
AS-M.2-2280-SATA
AES256
|
||||||
|
Family
Storage temperature range
|
AS25-SATA3
-40°C to +85°C
|
AS-M.2-2280-SATA
-55°C to +95°C
|
AS-M.2-2242-SATA
-40°C to +85°C
|
AS-M.2-NVMe
-55°C to +95°C
|
ASNanoX-SATA BGA
-40°C to +85°C
|
|||
|
Family
Operating altitude
|
AS25-SATA3
70,000 ft.
|
AS-M.2-2280-SATA
-1,000 ft. to 80,000 ft.
|
AS-M.2-2242-SATA
70,000 ft.
|
|||||
|
Family
Humidity
|
AS25-SATA3
5% to 95% relative, non-condensing |
|||||||
|
Family
Operating shock
|
AS25-SATA3
1,500 G/0.5ms
|
AS-M.2-2280-SATA
Half Sine, 50G peak, 11ms; 1000G /0.5mSec. (3 axes) |
AS-M.2-2242-SATA
1,500 G/0.5ms
|
AS-M.2-NVMe
1,000 G/0.5ms
|
||||
|
Family
Operating vibration
|
AS25-SATA3
2-500Hz, 3.1G
|
AS-M.2-2280-SATA
2.17 Grms (Random, 5Hz to 700 Hz, 3 vibrations axes)
|
AS-M.2-2242-SATA
2-700Hz, 3.1G
|
AS-M.2-NVMe
16.3G GRMS (10-2000 Hz)
|
||||
|
Family
Conformal coating
|
AS25-SATA3
Available
|
AS-M.2-2280-SATA
N/A
|
AS-M.2-2242-SATA
Available
|
|||||
|
Family
Customization
|
AS25-SATA3
Optional
|
|||||||
|
Family
OS drivers
|
AS25-SATA3
No special drivers required – uses existing Windows, Linux, VxWorks®, and SATA Drivers
|
AS-M.2-2280-SATA
No special drivers required – uses compliant NVMe Windows, Linux, VxWorks® drivers
|
AS-M.2-2242-SATA
No special drivers required – uses existing Windows, Linux, VxWorks®, and SATA Drivers
|
AS-M.2-NVMe
No special drivers – uses compliant NVMe Windows, Linux drivers
|
ASNanoX-SATA BGA
No special drivers – uses compliant NVMe Windows, Linux, and VxWorks® drivers
|
|||
Asine Industrial MLC & pSLC
Line Card Extended 2021
Family | ASmSATA | AS25-SATA Small to Medium capacity | AS25-SATA High capacity | AS25-SATA Enterprise and broadcasting | AS-M2-SATA | AS25-NVMe-PCIe | AS-M2-NVMe-PCIe | AS-XMC | AS-PMC |
Capacity Max | 1 TB | 1 TB | 16 TB | 2 TB | 1 TB | 16 TB | 2 TB | 8 TB | 128 GB |
NAND technology | pSLC, MLC | pSLC, MLC | pSLC, MLC | pSLC, MLC | pSLC, MLC | pSLC, MLC | pSLC, MLC | pSLC, MLC | SLC |
Sustained Read / Write (MB/sec) | 500 Read/Write for pSLC, 520 Read and 300 Write for MLC | >=500 Read/Write | >=500 Read/Write | >=500 Read/Write | pSLC Sustained Read up to 520MB/S, Write up to 520MB/Sec. MLC Sustained Read up to 520MB/Sec and Write 300MB/Sec. | Sustained Read & Write up to 1200MB/Sec any capacity. MLC Sustained Read up to 1200MB/Sec for 2/4/8TB and Write 1000Mb/Sec. (4/8TB). 800 MB/Sec Write for 2TB | Read up to 1200MB/S, Write up to 700MB/Sec ; MLC Read up to 1000MB/Sec and Write 350MB/Sec. | >=1,000 Read/Write | 50/50 |
IOPS Read / Write | Up to 50,000 R/W for pSLC, Up to 70,000 R/W for MLC | Up to 45K / Up to 50K for pSLC/MLC, up to 80K for TLC | Up to 80K / Up to 70K | N/A | Up to 50K R/W for pSLC, Up to 70K R/W for MLC | Up to 90K / Up to 80K | Up to 80K for pSLC, Up to 70K for MLC | Up to 100K / Up to 100K | Up to 17K / Up to 3K |
Disk interface | SATA3 | SATA3 | SATA3 | SATA3 | SATA3 | PCIe Gen2 x4 lane NVMe 1.1a compliant | PCIe Gen2 x4 lane NVMe 1.1a compliant | VITA 42.3 PCIexpress interfaces | PCI |
Secure Erase | SE / Secure Erase by H/W and S/W trigger | SE / Secure Erase by H/W and S/W trigger | SE / Secure Erase by H/W and S/W trigger | N/A | SE / Secure Erase by H/W and S/W trigger | SE / Secure Erase by H/W and S/W trigger | SE / Secure Erase by H/W and S/W trigger | Fast Erase by S/W trigger | SE / Secure Erase by H/W and S/W trigger |
Fast SE | ATA8 security feature set | ATA8 security feature set | ATA8 security feature set | ATA8 security feature set | ATA8 security feature set | Compliant NVMe Secure Erase support | Compliant NVMe Secure Erase support | Compliant NVMe Secure Erase support | Yes |
Endurance TBW write / erase | 320 @ 120GB and 640 @ 240 GB for pSLC, 60 @ 240GB and 120 @ 500GB for MLC | Up to 2PB @ 512GB for SLC, 120 @ 500GB for MLC, 4,800 @ 240GB for pSLC | Up to 1,000 @ 4TB for MLC, up to 2,000 @ 8TB and up to 17,000 @ 1TB for pSLC 128K sequential workload | Up to 2,500 @ 960GB Enterprise model, up to 1,000 @ 4TB for MLC, up to 2,000 @ 8TB and up to 10,000 @ 4TB for pSLC | 60 @ 240GB and 120 @ 500GB for MLC, 320 @ 120GB and 640 (@128KB-4800TBW) @ 240GB for pSLC | Up to 1PB @ 4TB and up to 2PB @ 8TB for MLC, up to 5PB @ 2TB and 10PB @ 4TB for pSLC | 60 @ 240GB and 120 @ 500GB for MLC, 17,000 @ 1TB 128K sequential workload for pSLC | Up to 1,000 @ 4TB and up to 2,000 @ 8TB for MLC, up to 10,000 @ 4TB for pSLC | Up to 500 @ 128GB for SLC |
Endurance Read Cycles | Unlimited read cycles | Unlimited read cycles | Unlimited read cycles | Unlimited read cycles | Unlimited read cycles | Unlimited read cycles | Unlimited read cycles | Unlimited read cycles | Unlimited read cycles |
Operating temperature | Commercial: 0°C to +70°C, | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C | Commercial: 0°C to +70°C, Industrial: -40°C to +85°C |
Reliability features MTBF | 1,500,000 Hours MTBF, Moderate SPOR/PLP | 1,500,000 Hours MTBF, PLP- Power Lost Protection – SPOR | Text2,000,000 Hours MTBF | Text1,800,000 Hours MTBF, Moderate SPOR/PLP | Text1,500,000 Hours MTBF by JEDEC-218/219 | Text1,500,000 Hours MTBF, Moderate SPOR/PLP | 1,500,000 Hours MTBF | 2,000,000 Hours MTBF | > 1,000,000 Hours MTBF |
Error correction | Embedded EDC/ECC, support up to 64-bit BCH Algorithm for Error Correction Code; Bad Block Mapping and Management; SMART support; Built-in power-up self test and automatic self-diagnostics; Wear-Leveling Algorithm: Dynamic & Static wear leveling | Embedded EDC/ECC, based on 48-bit Reed Solomon Algorithm for ECC, Bad Block Mapping and Management, Wear-Leveling Algorithm: Dynamic wear- leveling, Built-in power-up self test, manual and automatic self-diagnostics | |||||||
Encryption | AES256, OPAL 2.0 | AES256, OPAL 2.0 | AES256, OPAL 2.0 | AES256 | AES256 | AES256 | AES256, OPAL | N/A | N/A |
Storage temperature range | -55°C to +95°C | -60°C to +110°C | ‘-55°C to +95°C | ‘-55°C to +95°C | ‘-55°C to +95°C | ‘-55°C to +95°C | ‘-55°C to +95°C | ‘-45°C to +95°C | ‘-55°C to +95°C |
Operating altitude | 80,000 ft. | 70,000ft. | -1,000ft. To 70,000 ft. | -1,000ft. To 70,000 ft. | -1,000ft. To 70,000 ft. | -1,000ft. To 70,000 ft. | -1,000ft. To 70,000 ft. | -1,000ft. To 70,000 ft. | 70,000ft. |
Humidity | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing | 5% to 95% relative, non-condensing |
Operating shock | 1,500 G/0.5ms | 1,500 G/0.5ms | 1,500 G/0.5ms | 1,500 G/0.5ms | 1,000 G/0.5ms | 1,500 G/0.5ms | 1,000 G/0.5ms | 1,500 G/0.5ms | 1,500 G/0.5ms |
Operating vibration | 16.3 RMS(Random, 20Hz to 2,000 Hz, 3 vibrations axes) | 16.3 RMS(Random, 20Hz to 2,000 Hz, 3 vibrations axes) | 2.17 GRMS (5-700 Hz) | 2.17 GRMS (5-700 Hz) | 2.17 GRMS (Random, 5-700 Hz, 3 Axes) | 16.3 GRMS (10-2,000Hz) | 2.17 GRMS (5-700 Hz) | 2.17 GRMS (5-700 Hz) | 16.3G RMS (Random, 20Hz to 2000 Hz, 3 vibrations axes) |
Conformal coating | Available | Available | Available | Available | Available | Available | Available | Available | Available |
Conduction cooling | Optional for OEM | Available | Available | Available | Optional for OEM | Available | Optional for OEM | Available | Available |
Customization | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
OS drivers | No special drivers – uses embedded OS NVMe & SATA Windows, Linux, drivers | ||||||||
